Description
The DWMM4-6-60 Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz.

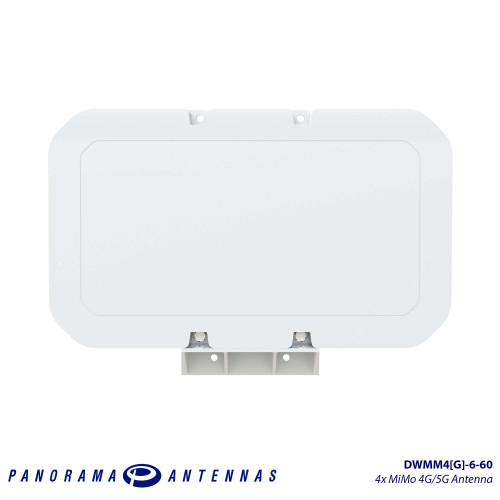

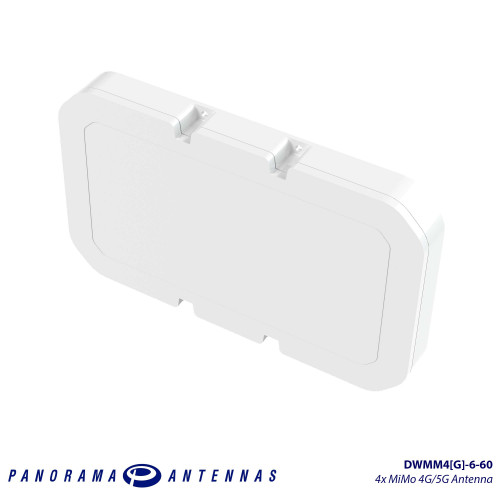

Incorporating four separately fed ultra wideband elements in a single housing the Panorama DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.

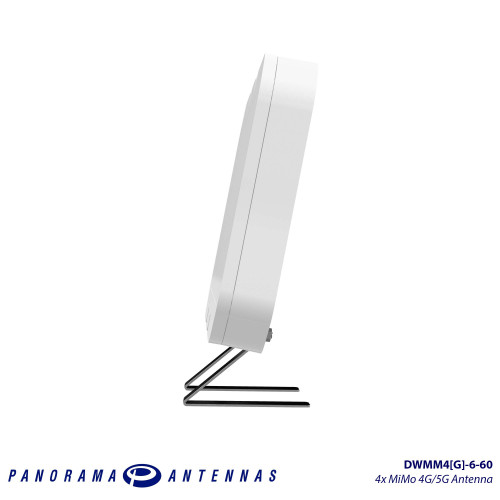

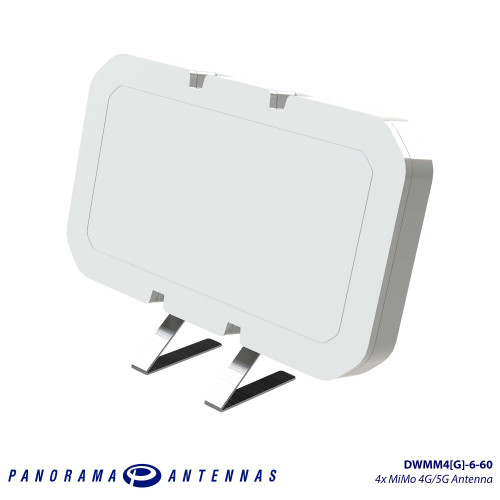

The Panorama DWMM4-6-60-5SP 5G antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment.
The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation. and the model that we stock is the DWMM4-6-60-5SP which is pre-terminated with 4 x 5m long cables with SMA male connectors to screw directly to the majority of our 4×4 MiMo 5G routers.
DWMM4-6-60 Specification
Electrical Data | |
Typical VSWR | <2.5:1 |
Peak Gain (dBi) | 7dBi |
Max Input Power (W) | 10 |
Pattern | Hybrid |
Global Positioning Data | |
Frequency Range (MHz) | 617-960 / 1427-6000 |
Mechanical Data | |
Available Colours | White |
Length (mm) | 371 (14.6”) |
Height (mm) | 221 (8.7”) |
Operating Temperature | -40° / 85°C ( -40° / 185°F ) |
Mounting Data | |
Mounting Type | Wall, Mast, Desk Mount |
Approvals Data | |
IP Rating | IP66 |
The DWMM4-6-60 antenna provides 4×4 MiMo solution for global 4G/5G networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4 is suitable for a huge range of fixed site and failover applications.
The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet.
The omni-directional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
The antenna is fitted with integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.
DWMM4-6-60 – Product Variants
Please note that our standard stock item is the DWMM4-6-60-5SP – please contact us for prices and lead times of other variants.
Part Number | Cable Length | 4G/5G | GPS/GNSS |
---|---|---|---|
DWMM4-6-60-5SP | 5m (16′) | SMA (m) | – |
DWMM4-6-60-5FKJ | 5m (16′) | FAKRA D Jack | – |
DWMM4-6-60-5NP | 5m (16′) | N (m) | – |
DWMM4-6-60-05NJ | 0.5m (1.5′) | N (f) | – |
DWMM4G-6-60-5SP | 5m (16′) | SMA (m) | SMA (m) |
DWMM4G-6-60-5FKJ | 5m (16′) | FAKRA D Jack | FAKRA C Jack |
DWMM4G-6-60-5NP | 5m (16′) | N (m) | N (m) |
DWMM4G-6-60-05NJ | 0.5m (1.5′) | N (f) | N (f) |
Download Datasheet for DWMM4-6-60-5SP – CLICK HERE (PDF)
